Mag Flow 650 provides worry free flow measurement, which measures the flow of any conductive fluid flowing through it.
It uses non-intrusive measurement element hence derbies/solids will not interfere with the measurement. Its rugged rubber lining provides outstanding electrical insulating properties.
Mag flow 650 is well designed for industrial waste and water industry.
The performance is independent of material properties such as correction, viscosity, density etc. As always all Mag flow meters are individually calibrated.
- Ideal for waste water
- Suitable for any type of conductive fluid
- Negligible pressure drop
- Unaffected by density or viscosity
- High turn-down ratio
- Ideal for outdoor installation
- 270° display rotation possible
- Communication ready for monitoring/data logging
- High accuracy
- Reversing flow warning
- No moving parts to were and break
- All meters individually calibrated
Technical Specifications.
Available Ranges

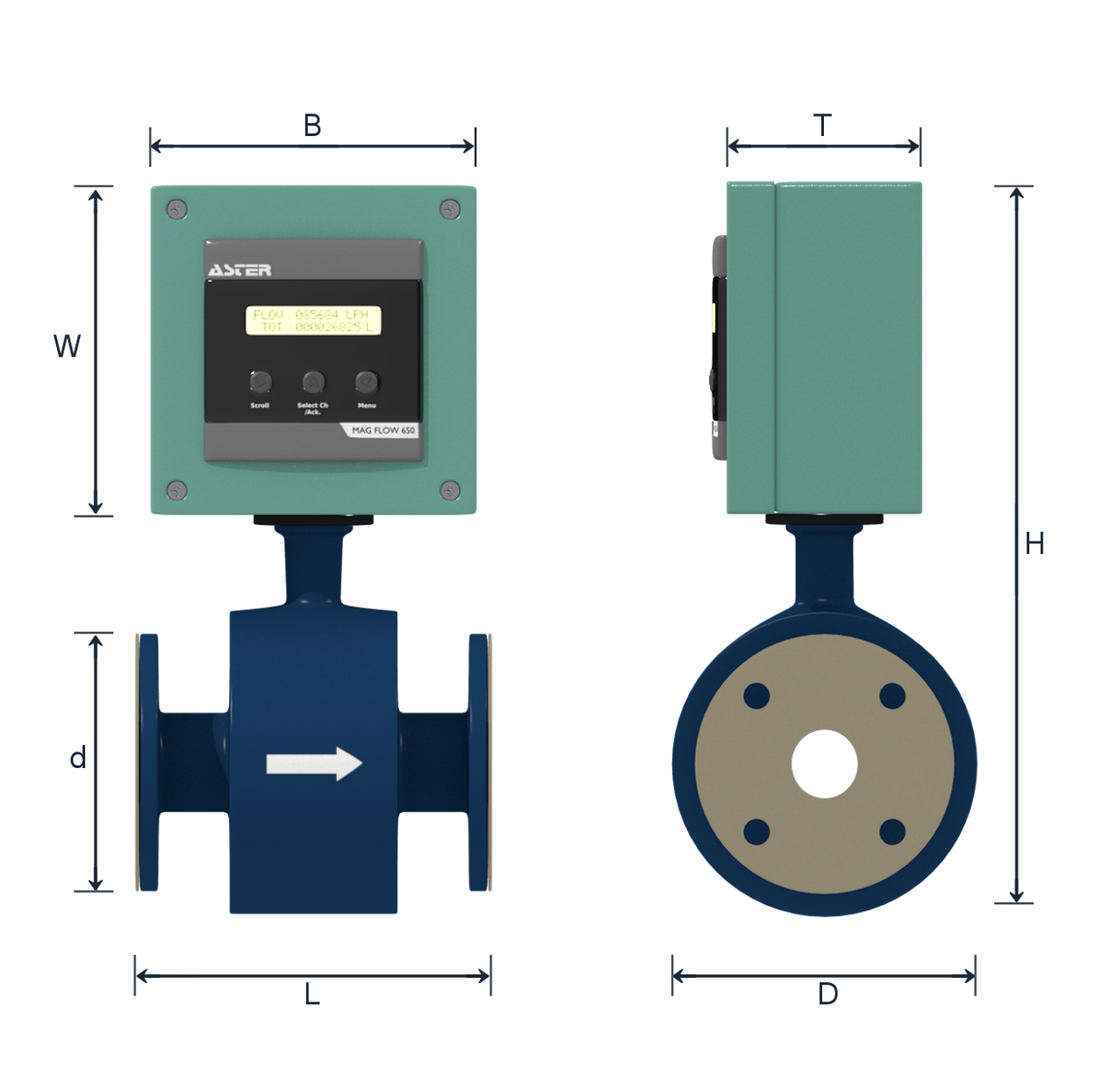

| Line Size | Flow Range | L | D | B | W | T | H | D | |
|---|---|---|---|---|---|---|---|---|---|
| 25NB | 1'' | 0.2-10 m3/hr | 165 | 144 | 160 | 160 | 90 | 355 | 140 |
| 40NB | 1.5'' | 01-20 m3/hr | 175 | 133 | 160 | 160 | 90 | 367 | 175 |
| 50NB | 2'' | 02-35 m3/hr | 175 | 152 | 160 | 160 | 90 | 367 | 175 |
| 65NB | 2.5'' | 04-60 m3/hr | 185 | 184 | 160 | 160 | 90 | 390 | 180 |
| 80NB | 3'' | 06-90m3/hr | 185 | 216 | 160 | 160 | 90 | 394 | 180 |
Flow Measurement and Toaliser and Data Logging of ETP / STP water and Water Containing High Suspended Solids
- Ideal for waste water
- Suitable for any type of conductive fluid
- Negligible pressure drop
- Unaffected by density or viscosity
- High turn-down ratio
- Ideal for outdoor installation
- 270° display rotation possible
- Communication ready for monitoring/data logging
- High accuracy
- Reversing flow warning
- No moving parts to were and break
- All meters individually calibrated
